Expert Connect

4-Channel | 4K 60Hz

Sale price Price $769.99 Regular price

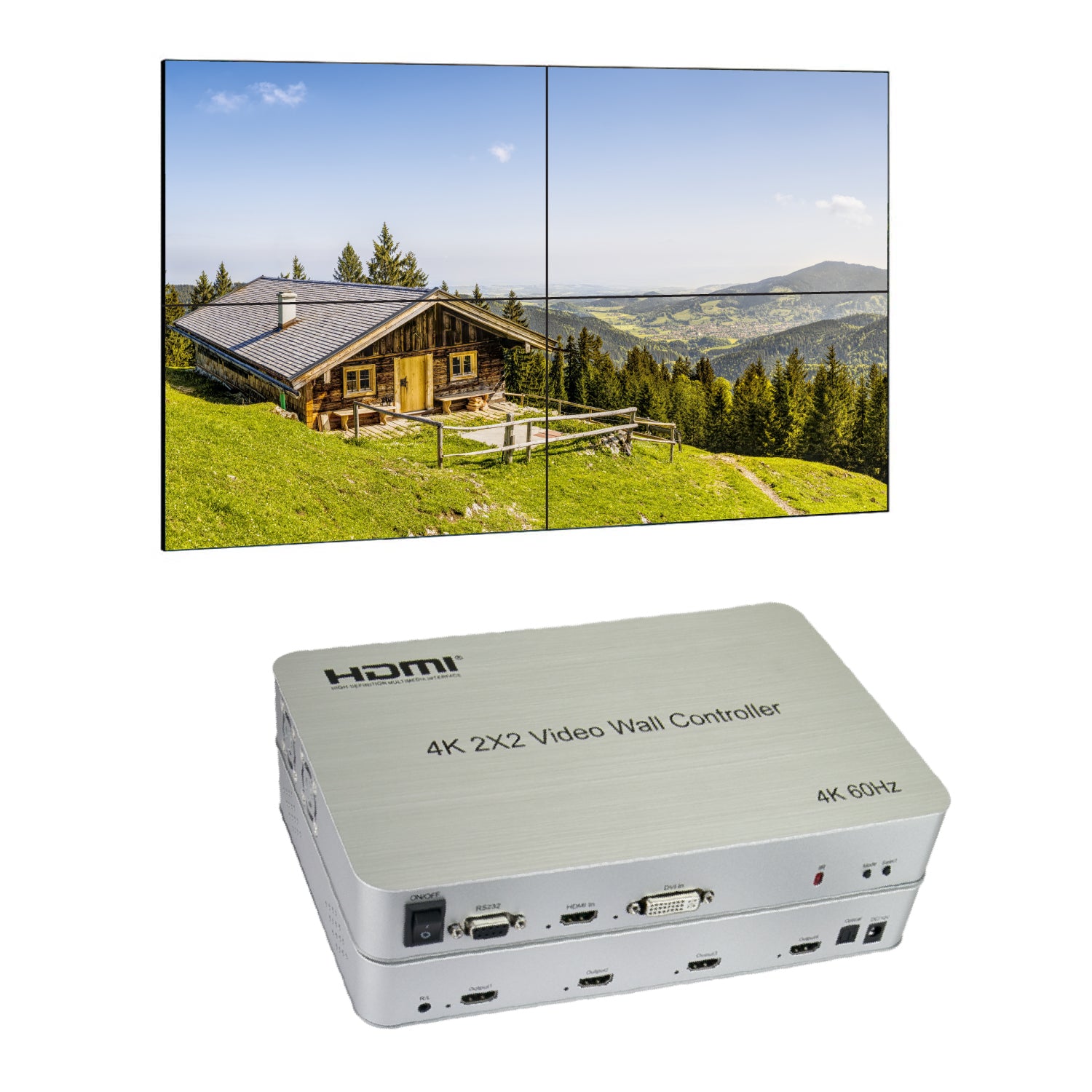

4K 2x2 Video Wall Controller

    Distributes one HDMI or DVI device (computer, laptop, DVD player, console etc.) on maximum 4 screens simultaneously.

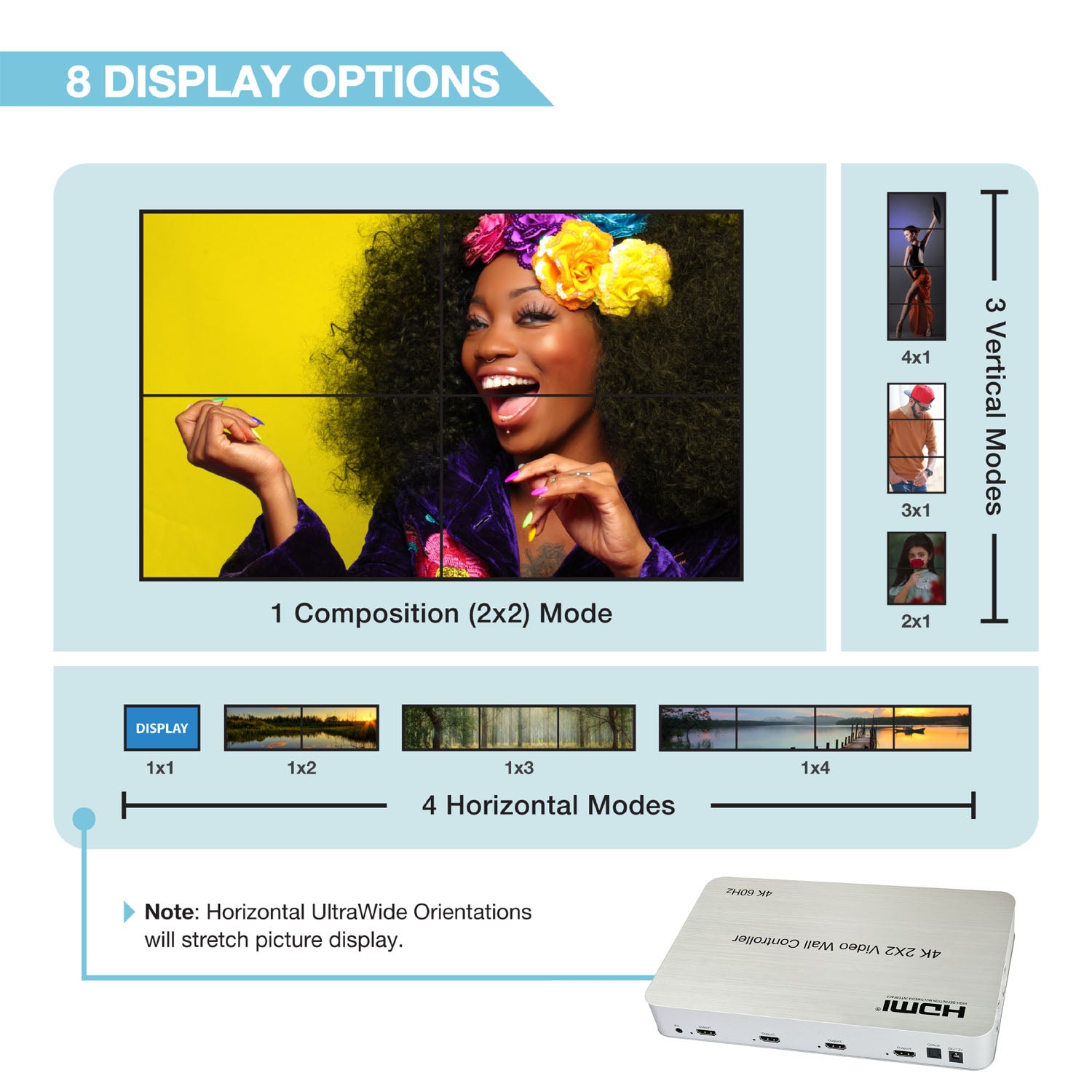

    8 Display Modes - 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1 provide extra diversities on the display options. Transmit HDMI signal for up to 100 feet without losing picture quality.

    Cascading Mode - 2x4, 2x8 with additional units.

    Plug & Play. No driver needed.

    SKU: VW4K4C60

    Specifications

    HDMI version
    HDMI 2.0

    HDCP version
    HDCP 2.2

    Support Input Video Resolutions

    • 4K@60Hz
    • 4K@25/30Hz
    • 1080p@25/30/50/60Hz
    • 1080i @ 50/60Hz (For Direct TV and other broadcast satellites)
    • YUV4:2:2 24bit, YUV4:4:4 24bit,YUV4:2:0 24bit, RGB4:4:4 24bit

    Support Output Video Resolution

    • 4K@60Hz
    • 1080p@60Hz (in each display)
    • RGB4:4:4 24bit

    Support Audio Format

    • PCM 2.0
    • Does Not Support Dolby Digital and DTS

    Power Adapter

    • Input: AC (50HZ, 60HZ) 100V-240V;
    • Output: DC 12V 3A

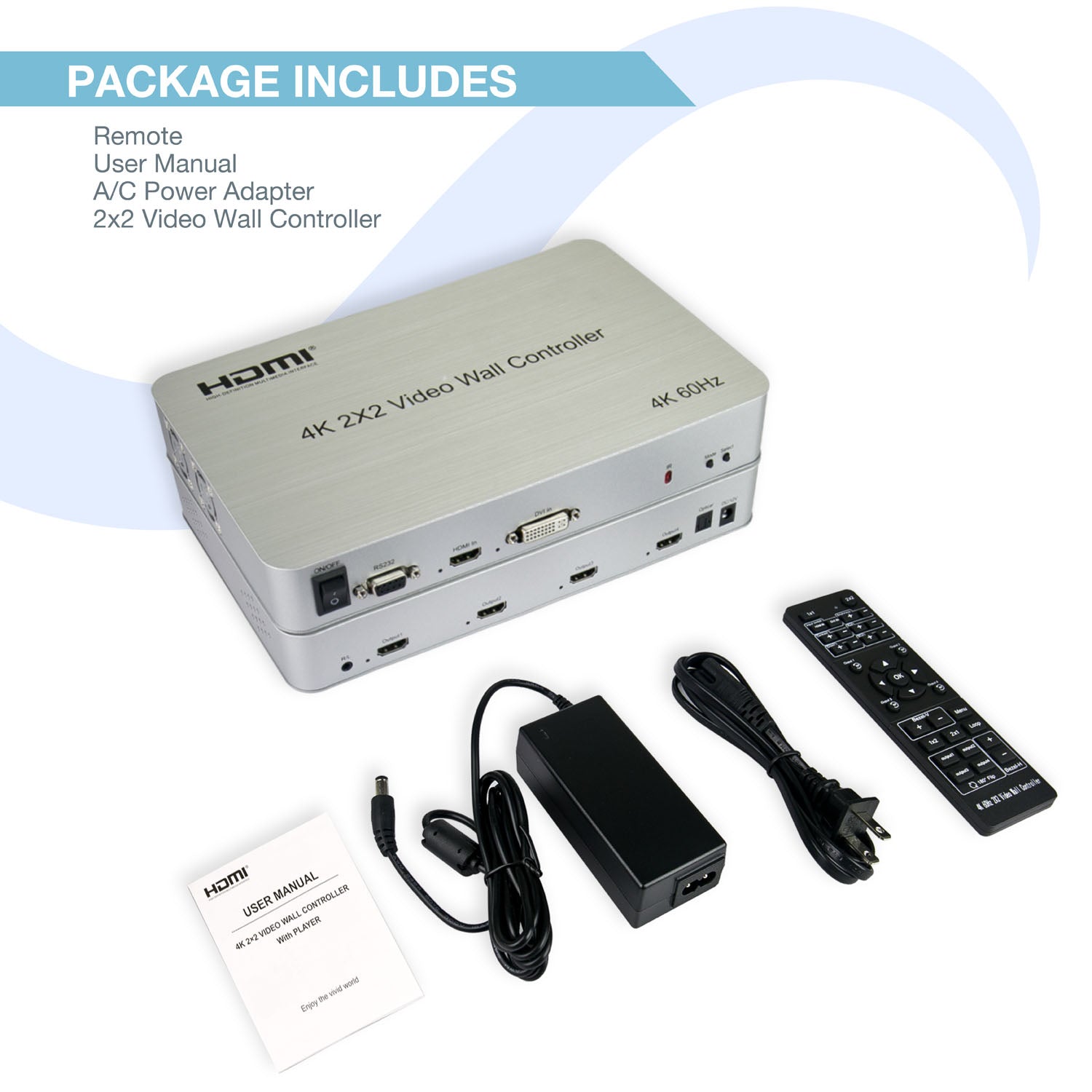

        Package

        • 4 Channel 4K Video Wall Controller
        • Remote Control
        • 12V AC Adapter
        • User Manual
